Asheville Class Gunboats LOA 165′ TDISP 240 tons (17, 15 retired and sold to other navies, 2 were in service and Naval Surface Warfare Centers until ca. 2016)

USS Gallup art NH 85570-KN
USS Gallup PG-85 artwork Courtesy of the Naval History and Heritage Command NH 85570-KN (author not known)

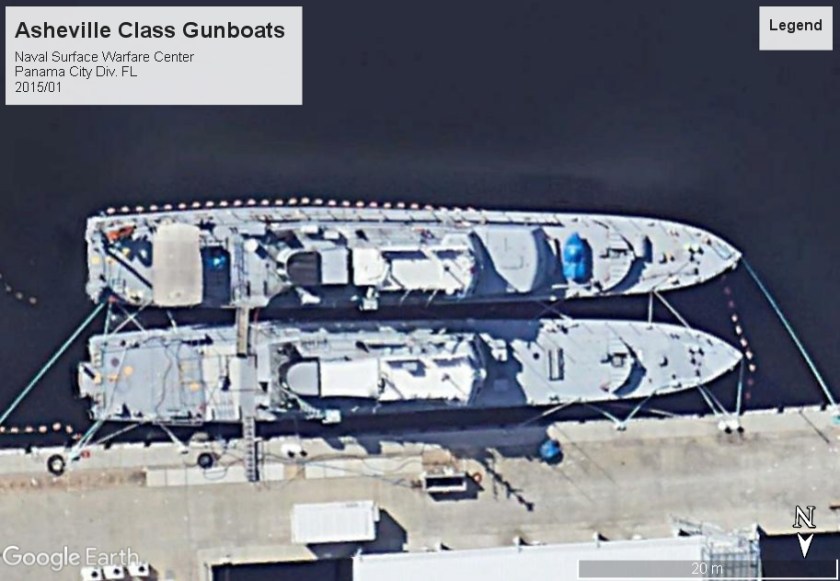

Asheville Class US Gunboats Panama City FL
These are likely USS Chehalis (1969) and USS Grand Rapids (1977), both recently sold, with ex-USS Chehalis scrapped.

USS Canon PG-90 (1968-1977) Served in Vietnam and was extensively damaged by shore based rockets. Laid up in Philadelphia Inactive Ships Facility, currently on hold for possible preservation.

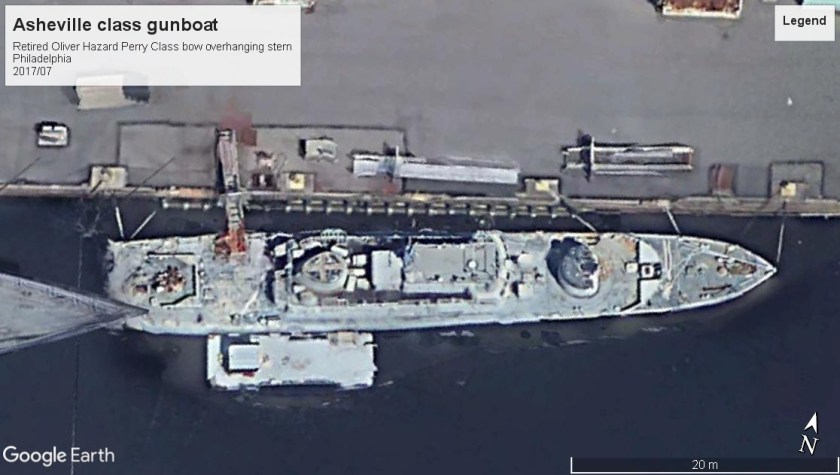

Asheville Class US Gunboat Philadelphia 2017

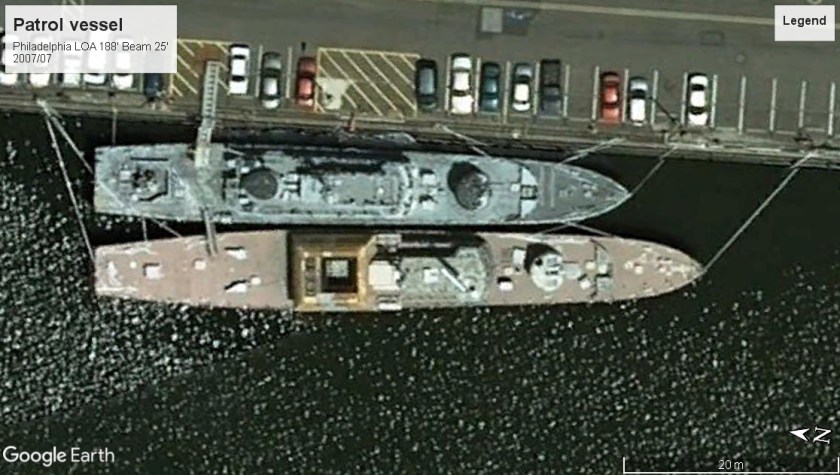

Unknown Patrol vessel Philadelphia 2007
USS Canon PG-90 is inboard of a slightly longer, very similar patrol vessel, whose dimensions are roughly 188′ long by 25′ maximum beam. The vessel is virtually identical in the bows and bridge, lengthened on the quarterdeck/stern with what appears to be a large, rectangular funnel, suggesting different propulsion. The vessel appears to be some type of Asheville variant, or export model, such as a PSMM Mark 5 built for South Korea or Taiwan, but lengthened beyond what other sources suggest. Given the 3″50 caliber deck gun, it seems to be Tacoma built. If so, all missile armaments and fittings behind the funnel have been removed.

PCE-842-class LOA 184′ TDISP 850 tons

ex-USS PCE-897 (1945) transferred to Philippine Navy 1948 as BRP Iloilo PS-32 decommissioned 2016BRP Iloilo PS-32 Philippines 2018.jpg

Hydrofoil patrol vessels

Pegasus Class fast attack patrol boats LOA 133′ TDISP 255 tons (6 built, 1 preserved)

USS Aries PHM-5 (1982-1993) currently attempts are being made to create a hydrofoil museum with several preserved craft. Vessels originally armed with a 76mm gun and harpoon missile racks for 8 missiles on the stern.

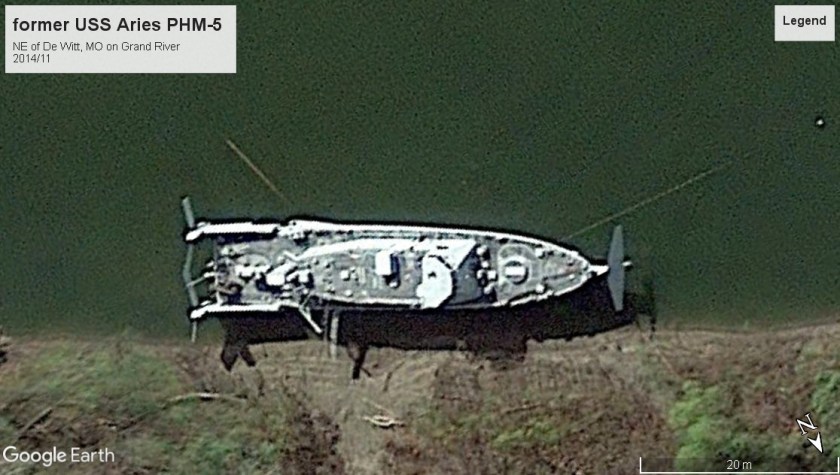

USS Aries PHM-5 De Witt MO 2014
Aries has her bow and stern foils folded up out of the water, and all armament removed.

USS Gemini PHM-6 (1982-1993) retired near Wilmington NC, purchased by private owners who converted it in 2006 to a private yacht. Sold again and came back to same location by 2009. In 2011 was abandoned on site, and owner had it scrapped 2014. A youtube video shows conversion views [link].

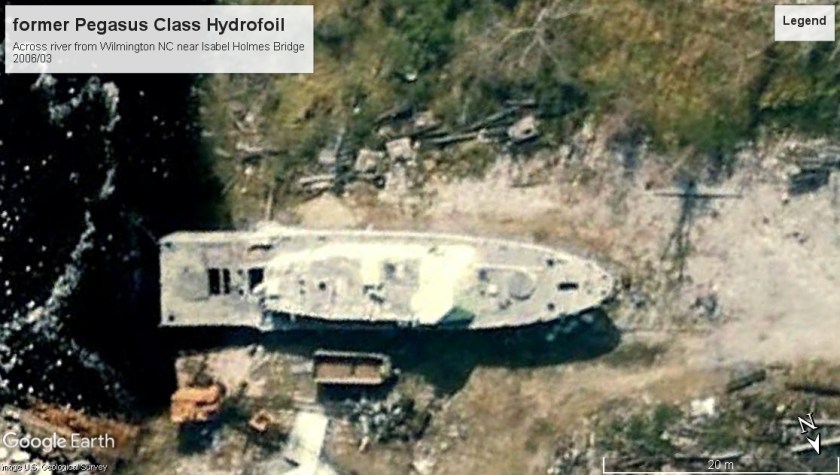

Pegasus class hydrofoil retired Wilmington 2006
It is possible this is former USS Gemini PHM-6 undergoing conversion to yacht Gemini.

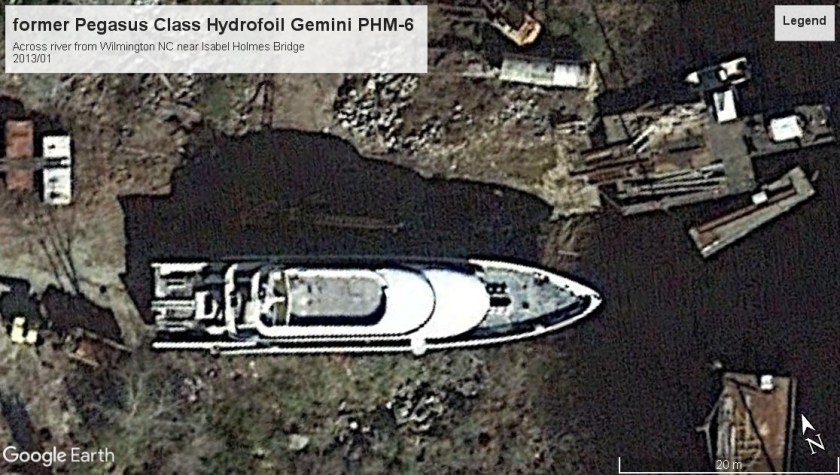

Pegasus class hydrofoil retired Wilmington 2013
3 years after leaving the scrapyard where she was rebuilt, Gemini returned to the same area near Wilmington NC. Gemini shows considerable work to her topsides to transform the vessel into a yacht. Features included a jet-ski stern deck, a jacuzzi, and two-level observation deck. She also had updated diesel engines.

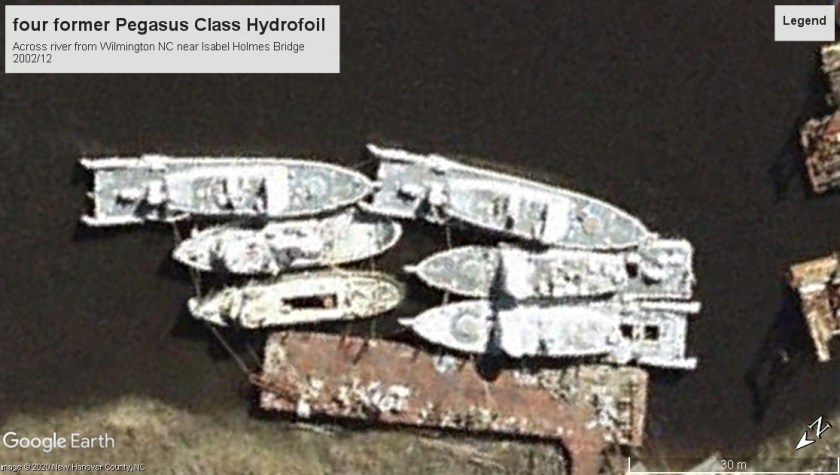

Pegasus class hydrofoils retired Wilmington 2002
Of these four Pegasus class retired hydrofoils, only ex-USS Gemini initially avoided scrapping, being converted to a yacht.

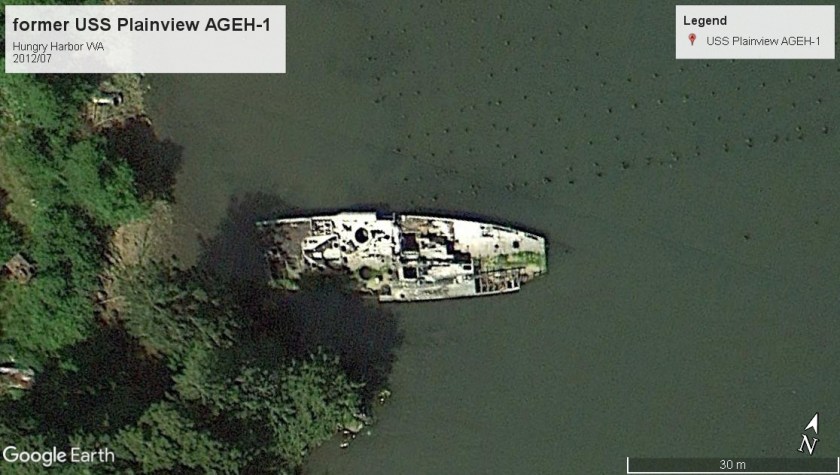

USS Plainview AGEH-1 (1969-1978) unique hydrofoil. LOA 220′ TDISP 310 tons. Scrapping at Hungry Harbor WA, ongoing for many years.USS Plainview AGEH-1 Hungry Harbor WA 2012

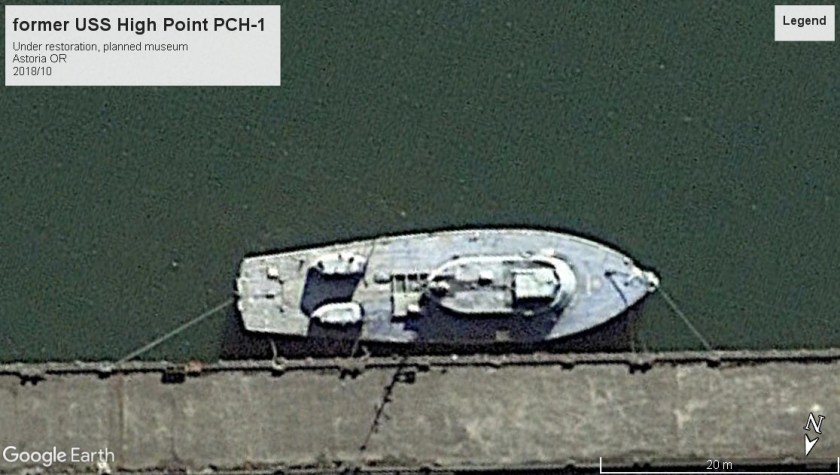

USS High Point PCH-1 (1963-1980) first US Navy hydrofoil. LOA 115′ TDISP 110 tons Under restoration near Astoria, OR, for preservation as museum ship.USS High Point PCH-1 Astoria 2018
