Junkers Trench Raider now on display at CASM!

As part of a First World War upgrade, the Junkers J1 Armoured aircraft (see earlier post below for more info) has been re-assembled and is on display in the main museum at the Canada Aviation and Space Museum!

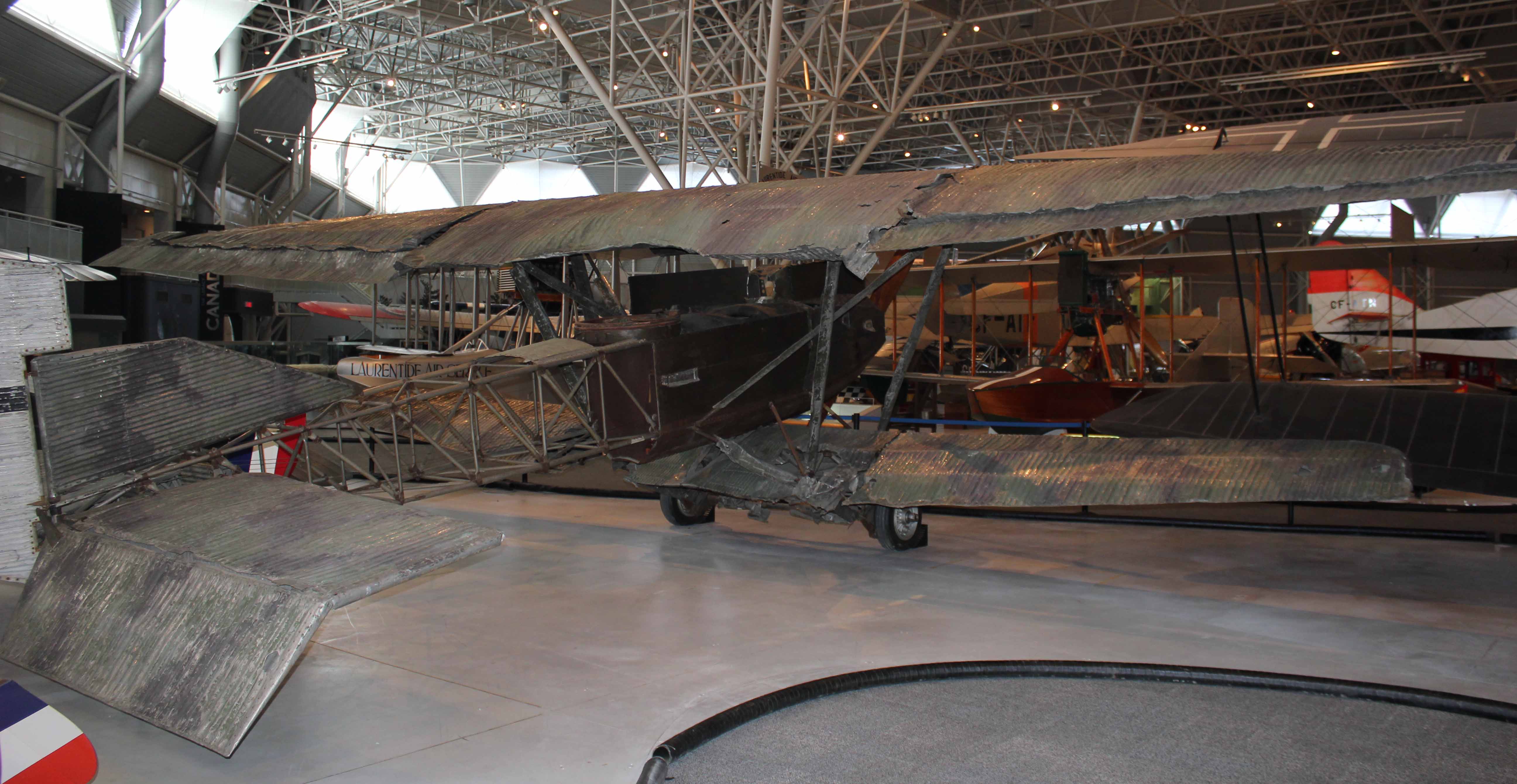

This war trophy bird is back on display. Next to the German AEG GIV bomber, these two make a nice reunion of 1919 War Trophy display planes.
 This war trophy bird is back on display. Next to the German AEG GIV bomber, these two make a nice reunion of 1919 War Trophy display planes. Author’s photo

This shows the construction of the aircraft: metal tubing (usually covered by fabric), corrugated cladding, and the armoured section protecting the gunner/observer, pilot, and engine, with 1\4 inch armoured plate. You can still see some of the camouflage (like in the archival photo on the original post) on some of the surfaces.

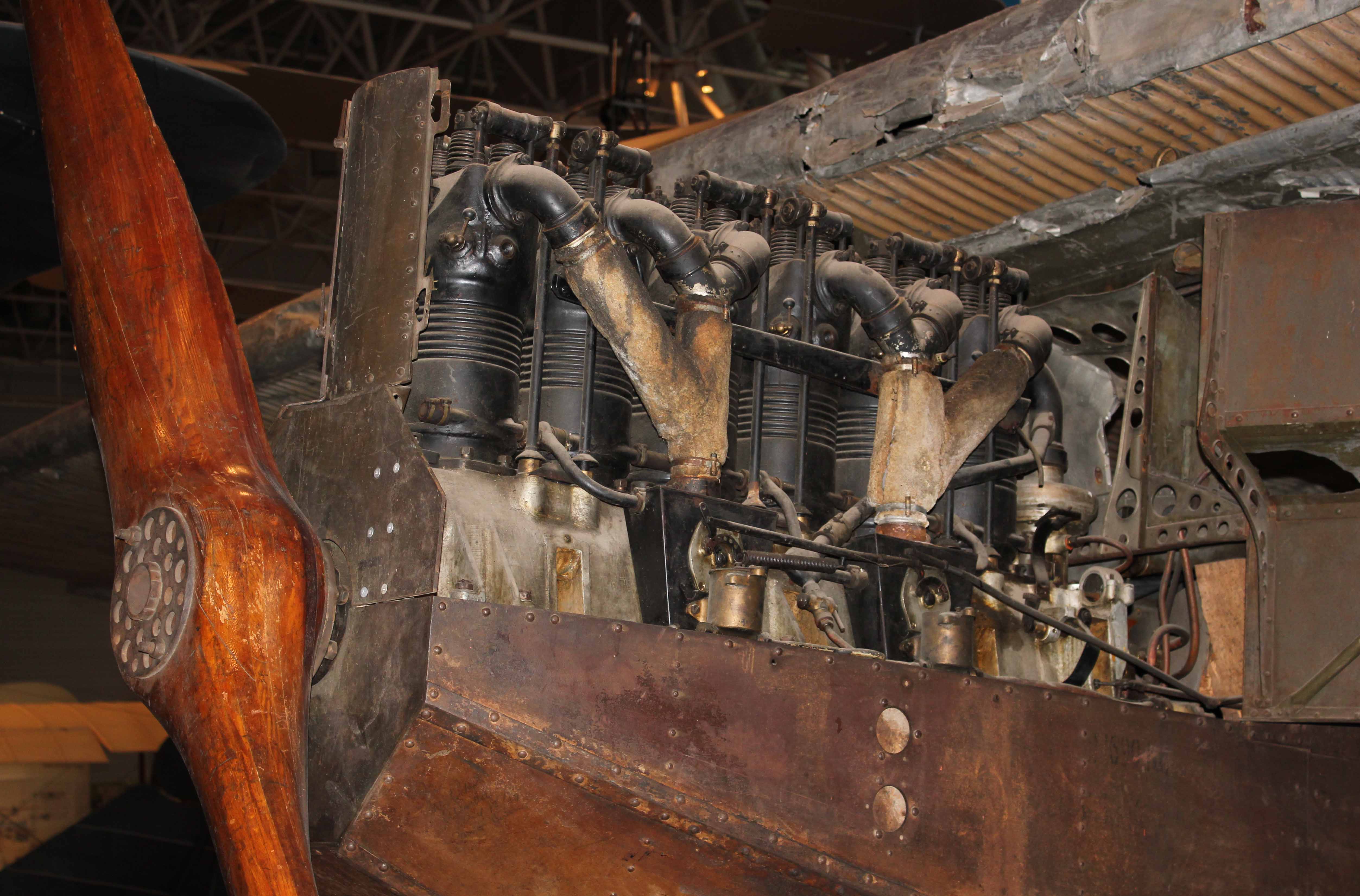

Here is a detailed view of the engine, minus the distinctive trunked exhaust, with armoured plate folder open.
Here is a detailed view of the engine, minus the distinctive trunked exhaust, with armoured plate folded open. Author’s photo
